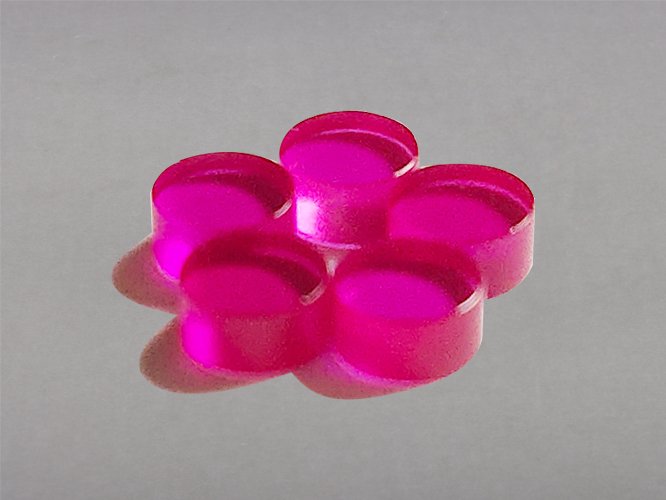

Overview
Since the high-quality artificial sapphire/ruby crystal material has good light transmission in the 0.20~5.50μm band, and the infrared transmittance hardly changes with temperature, optical elements and infrared-transmitting optical windows made of high-quality artificial sapphire , It has been fully used in military night vision through infrared equipment, cryogenic laboratory observation port, high-precision instruments and meters for navigation, aerospace and aviation.
Product specification
1. Diameter D of the outer circle: Ø 0.60~ Ø 20.00mm, the minimum tolerance of the outer circle can reach 0.005mm;
2. Thickness H: 0.20~8.00mm, the minimum thickness tolerance is 0.01mm, the parallelism error of both ends is not more than 0.02mm, the surface roughness is Rz0.1 (mirror surface), and the perpendicularity error of both ends relative to the axis of the inner hole is no less than 0.02mm. Greater than 1°;
3. Inner hole diameter d: Ø 0.13~Ø 3.00mm, the minimum hole diameter tolerance can be controlled at 0.004mm, and the roundness tolerance and cylindricity tolerance of the inner hole are not greater than the bearing inner hole hole diameter tolerance;
4. Oil groove: depth h=1/3H, the minimum tolerance can be controlled at 0.04mm, the minimum curvature radius SR can be controlled at 0.30, and the surface roughness can reach Rz0.2.
