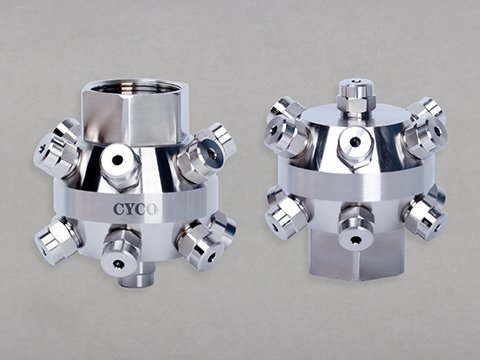

Design Features
1. The 6160 fixed tank cleaning nozzle assembly has a large flow capacity and can clean tanks with a diameter of up to 3.1 meters
2. Use 1/4″ or 1/8″ full cone nozzle to change the flow rate, and the 6160 nozzle can pass through the tank mouth with a maximum diameter of 130mm
3. It is used for cleaning large tanks with super large flow rate, cleaning large tanks with a diameter of 6.7 meters. It uses full cone sizes of 1/2″, 3/4″ or 1″ to vary flow
4. The 10250-1 nozzle assembly can pass through the mouth of a tank with a diameter of 230 mm. For deep tanks, Type 10250-1 is available with a 1.5″ bottom outlet connection for pipe extension and 6160 nozzle assembly

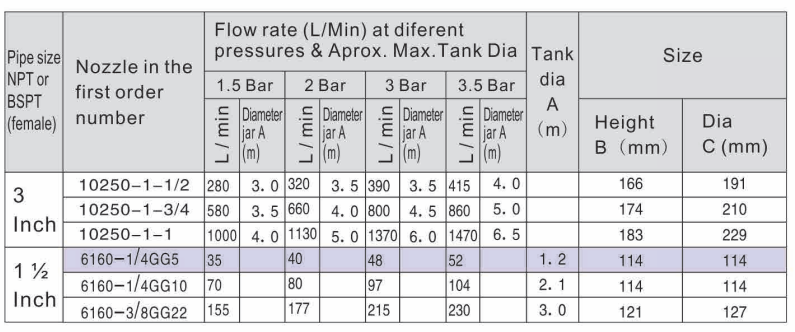

Performance parameters
Application
Suitable for tank trucks and underground storage tanks, such as cleaning tanks, beer tanks, pharmaceutical tanks, chemical tanks, industrial fermentation tanks, etc. that require high impact cleaning
